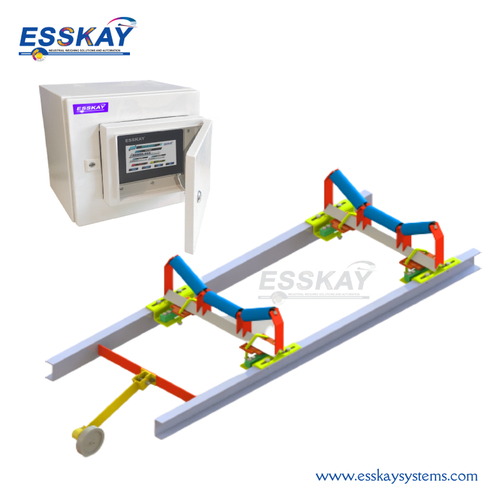

Belt Weigher System
Product Details:
- Used For Conveyor Weighing
- Product Type Belt Weigher System
- Capacity 0-3000 T/hr
- Power 34 Watt (w)
- Condition New
- Application Industrial
- Warranty 12 Months
- Supply Ability : 100 Unit Per Week
150000 INR/Unit
X
Price And Quantity
- 150000 INR/Unit
- 1 Unit
Product Specifications
- Industrial
- Belt Weigher System
- New
- 0-3000 T/hr
- Conveyor Weighing
- 12 Months
- 34 Watt (w)
Trade Information
- 100 Unit Per Week
- 7 Days
- All India
Product Description
We are offeringBelt Weigher System, which uses strain gauge type precision load cell which have negligible deflection. This is used to determine the mass of the material transported on a conveyor belt. This Belt Weigher Systemis available in different specifications as per the details provided by the clients. The belt speed of this system remains constant while the feed rate is regulated by varying the belt loading if required.

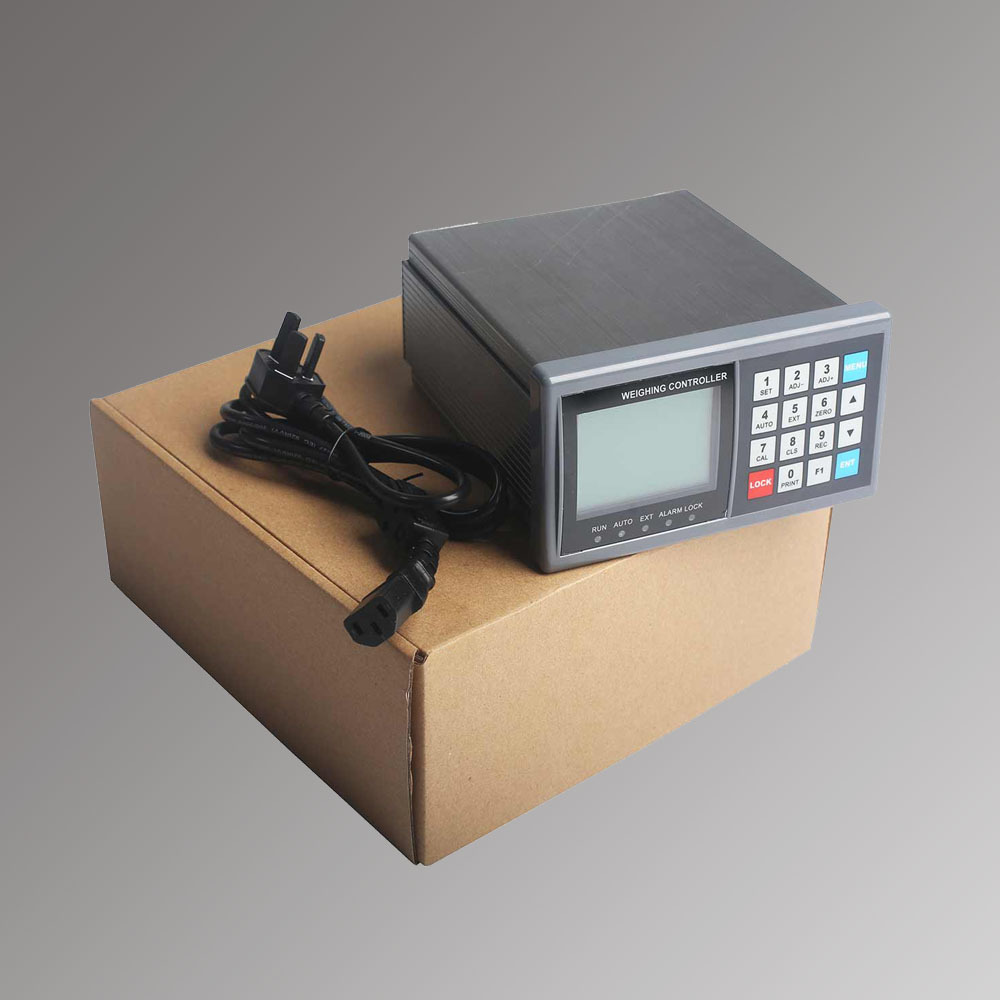

Main Feature
- EMC design with high anti jam for industrial environment.
- -bit ARM CPU with 72MHz clock & high arithmetic speed.
- 128.64 LCD display screen with 7 background colors.
- 24-bit ADC with internal resolution 1/1000000.
- High sampling frequency 400Hz.
- Special Anti Vibration digital filtering
- algorithm for precise weighing, stable display and rapid response.
- Zero Calibration & Auto Zero Tracking.
- Span Calibration & Segmenting Correction.
- Speed Calibration & Belt Length Calibration.
- The feeder & Belt weigher can be controlled by DI/DO.
- Quick and steady PID ration feeding control.
- Queryable records per shift/day/month of a year.
- Definable DI/DO/AO/COM
Other Details
- Power Supply: AC 220V+15%. 50/60Hz, Max 15W.
- Loadcell Excitation Voltage/Current: DC10V/250mA.
- 8 Loadcells [350Q] connectable.
- Weighing Signal Input Range: 0-25mV
- Speed Sensor Excitation Voltage/Current: DC12V/100mA.
- Speed Signal Input Range : 0.5-3000Hz.
- 3 Normally Open Switch Inputs [DI].
- 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
- 1 Totalized Weight Pulse Output [PO]: DC5-24V, 100mA.
- 2 PID Control Analog Output [AO]: 4-20mA, 0.05%FS.
- 1 Flow Set Analog Input[Al]: 4-20mA, 0.05%FS.
- COM1: Optional RS232/RS485/RS422/Prifibus- DP/Ethernet.
- COM2: RS232
- Connect Host IPC, Remote Display, Printer & Wireless Module.
- Outline Size [ WxHxD]: 164x86x193mm
- Panel Cutout Size [W x H]: 153 x 77mm
- Operating Temperature: -25°C - +45°C
- Protection Level of front panel IP65
- Accuracy Grade 0.5
- Accuracy of flow control 0.5%-1.0%
Technical Specification :
| Accuracy | 0.25% of F.S. |
| Application | Belt Conveyor Weighing |
| Display Type | LED/LCD Digital Display |
| Loadcell Interface | 4 x 350 Ohm Loadcells |
| Loadcell Excitation | 5 -12 V DC |
| AD Conversion | 1,00,000 counts |
| Digital Outputs[DO] | 5 |
| Digital Inputs[DI] | 6 |
| Analog Outputs[AO] | 2 |
| Analog Input[AI] | 1 |
| Speed Sensor | 1 |
| Speed Sensor Supply Voltage: | 10V DC |
| Speed Pulse Input Range | 3KHz |
| Pulse Output [PO] | 1 |
| Digital Communication Interface 1 | RS232 |
| Digital Communication Interface 2 | RS485 MODBUS/Ethernet TCP/IP |
| Report Print | Yes |
| Operating Voltage | 230V AC |
| Power Consumption | 34W |
| Operating Temperature | 70 Deg Celsius |
| Protection Level | IP 67 |
| Weight | 2.7Kg |

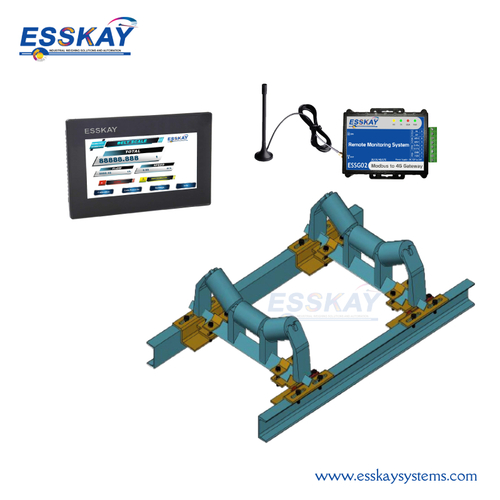

Other Products in 'Belt Scale' category
