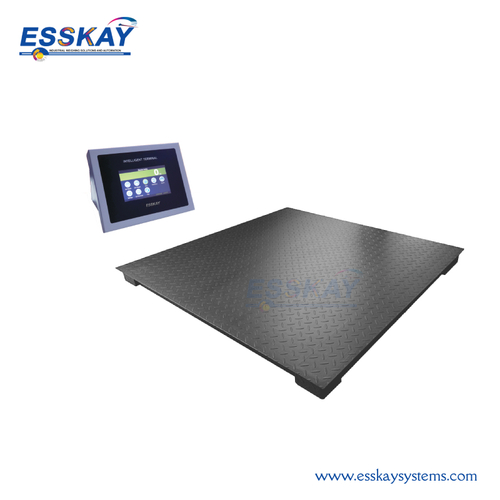

Heavy Duty Weighing Machine

Name: Heavy Duty Weighing Machine
Brand: ESSKAY WEIGHING AND AUTOMATION
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Heavy Duty Weighing Machine Specification

Display Type
Bright Digital Display

Application
Warehouses, Logistics, Manufacturing Units

Battery Life
Up to 48 Hours Backup

Power Source
220V AC Mains / Built-in Rechargeable Battery

Features
Rugged Construction, Overload Protection, Auto Calibration

Usage
Commercial and Industrial Weighing

Automatic Grade
Semi-Automatic

Interface
RS232 Serial Port

Connectivity Type
Wired

Size
Platform Size: 900mm x 600mm

Function
High Precision Weight Measurement

IP Rating
IP65

Product Type
Weighing Machine

Weighing Scale Type
Heavy Duty Platform Scale

Material
Other

Power Supply
electric

Monitor Display
Digital

Load
Up to 2000 kg

Accuracy
+/- 100 g

Capacity Range
Above 100 Kilograms (kg)

Color
Blue and Grey

Load Cell Type
High Precision Alloy Steel

Operating Temperature
0°C to 50°C

Pan Material
Anti-Corrosive Stainless Steel

Safety
Shock Resistant Platform

Maximum Overload Tolerance
150% of Rated Capacity

Control Buttons
ZERO, TARE, ON/OFF

Mount Type
Floor Mount

Data Logging
Optional

Protection Features
Short Circuit and Overload Protection

Leg Support
Adjustable Anti-Skid Feet

Calibration Method
Automatic and Manual Options

Indicator Type
Detachable Indicator

Heavy Duty Weighing Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Week

Delivery Time
7 Days

Main Domestic Market
All India

About Heavy Duty Weighing Machine

Owing to our rich industry experience and knowledge, we are specialized in offeringHeavy Duty Weighing Machine. This is designed for Measure Heavy Weight with higher accuracy. We offer this machine in several specifications according to the customers needs. Selectable auto zero tracking, buzzer in battery operation, battery backup, low battery indication & auto off function to save battery life are some features of thisHeavy Duty Weighing Machine.Furthermore, clients can avail the offered machine from us at the most affordable price range.

Other Details :

Brand	ESSKAy
Weighing Capacity	Above 100
Accuracy	0.25% F S
Display Type	LED Display, Digital
Use	Home, Industrial, Office
Power Supply	230V
Size	1 mtr X 1mtr
Color	Grey
Automatic Grade	Automatic
Battery Type	6V 4.5Ah/20Hr
Box Content	Indicator+Junction Box+Platform
Minimum Displaying Unit	0.1
Model	ESSP01
Weight Display	kg or T
Capacity	2 tons
Label Length	3 Mtr
Number Of Digits	4
Warranty	12 Months
Led Color-	Red
Condition	New
Usage	Static Weighing
Load Cell	4 LoadCell
Supply Voltage	90-250V

Exceptional Durability and Reliability

Built with a rugged, anti-corrosive stainless steel pan and high precision alloy steel load cell, this heavy duty platform scale delivers consistent performance in demanding environments. Its shock-resistant structure, overload tolerance up to 150%, and adjustable anti-skid legs provide maximum stability and safety during operation.

User-Friendly Calibration & Operation

Equipped with both automatic and manual calibration options, the scale ensures ongoing accuracy with minimal user effort. Straightforward control buttonsZERO, TARE, ON/OFFmake operation simple, supported by a detachable digital indicator for easy monitoring and maintenance.

Advanced Connectivity and Power Options

This weighing scale supports flexible power sources, running on 220V AC mains or its built-in rechargeable battery, offering up to 48 hours of backup. With a wired RS232 serial port for connectivity and optional data logging, it seamlessly integrates into modern industrial systems.

FAQs of Heavy Duty Weighing Machine:

Q: How do I calibrate the Heavy Duty Weighing Machineautomatically or manually?

A: You can calibrate the weighing machine using either the automatic or manual method. For automatic calibration, follow the on-screen prompts after pressing the appropriate control button. For manual calibration, refer to the user manual for detailed step-by-step guidance, ensuring optimal accuracy at all times.

Q: What types of environments is this weighing machine suitable for?

A: This platform scale is designed for commercial and industrial usage, such as warehouses, logistics hubs, and manufacturing units. Thanks to its anti-corrosive stainless steel pan and IP65 rating, it withstands challenging conditions with temperatures from 0C to 50C.

Q: When should I use the TARE and ZERO functions on the indicator?

A: Use the TARE function to subtract the weight of containers, enabling you to measure only the net weight of your goods. The ZERO button resets the display to zero, ensuring accuracy before each weighing session.

Q: Where can I install the platform scale for optimal performance and safety?

A: Install the weighing machine on a flat, stable surface using the floor mount and adjustable anti-skid feet. Avoid extreme temperature fluctuations and direct moisture to keep the equipment functioning optimally within its rated operating conditions.

Q: What is the process for data logging, and is it included?

A: Data logging is available as an optional feature. If equipped, connect the device via the RS232 serial port to your data management system to track and store weight measurements over time. This is especially useful in quality control and audit scenarios.

Q: How does the overload protection work and why is it beneficial?

A: The machine is equipped with overload tolerance up to 150% of its rated capacity, along with built-in overload protection and short circuit safeguards. This ensures the scale and load cell are protected from accidental heavy loads or electrical faults, thus extending the equipments operational life.
