HMI Weighing Controller ESSM10

Product Description

The offered HMI Weighing Controller ESSM10 is a smart and intelligent control system which is especially designed for the multichannel force measuring systems It is capable to operate in positive negative and double direction modes The touch display and the electronic circuitry of the offered control unit is encased in a plastic casing which gives excellent ingress protection against dust and water attacks HMI Weighing Controller ESSM10 is ultra light and thin with a simple user interface

Suitable for 14 Channels Force Measuring System

Optional Peak Detection Modes Positive Direction Mode  Negative Direction Mode  Double Direction Mode

Optional System Modes Combination Mode  Respective Mode

Optional Peak Detection Start  Stop Modes Threshold Mode  DI Switch Mode

EMC design with high antijamming capability suitable for industrial environment

CortexA8 CPU with 600MHz Clock 128M RAM and 128M Flash

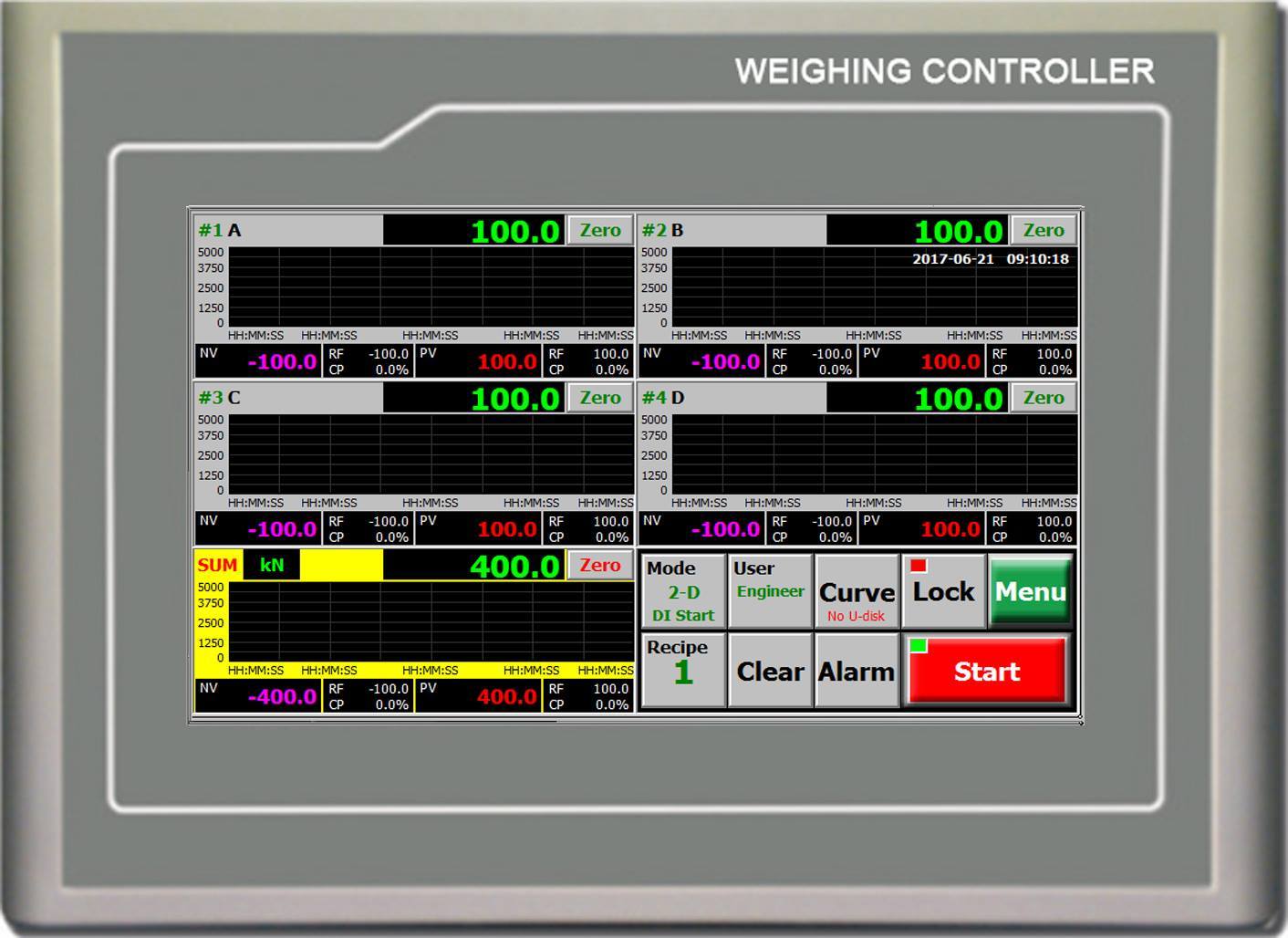

7102 Ultralight and ultrathin TFT touch screen with embedded weighingcontrol module

Loadcell Interface

4 Loadcell ports Max Connection Quantity 4x4 Loadcells 350

24bit Highprecision and highspeedD conversion module with 1130000 internal resolution and sampling frequency 3200Hz

IO Interface

7 Definable normally open switch inputs DI and 1218 definable normally open transistor switch outputs DO

4 Optional  definable analog signal AO0 10V for force signal output

Digital Communication Interface

COM1RS232  COM2RS485 for connecting Host IPCPLC and LED Remote Display

COMRS232 for connecting RS232 Serial Printer

USB1 for connecting USB mouse downloading HMI software from Udisk and copying data to Udisk

LAN Optional Ethernet port

Software Function

Manual ScreenlockingScreenunlocking Auto Screenlocking Digital Setting  Calibration and IO Testing functions available

Zero Upon Power Up Zero Autotracking ManualAuto Zero and Zero Calibration available

PositiveNegative Load Calibration and Segmenting Span Correction functions available

100 Recipes for force measuring and control

With the multitasking mode the measuring  control process will not be interrupted by parameter setting and the other operations
