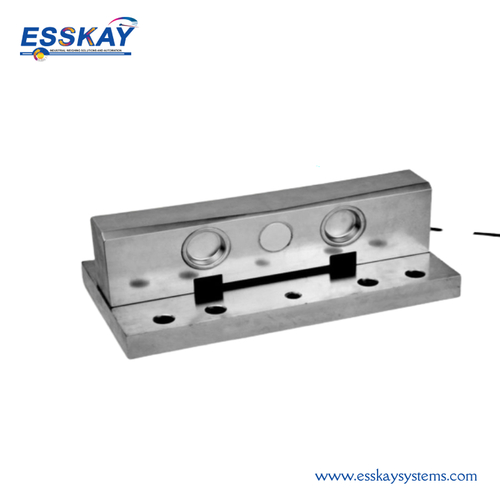

Rail Load Cells
Product Details:
- Accuracy 0.02 %
- Capacity Range 10 to 60 Tonne
- Click to view more
X
Price And Quantity
- 1 Unit
Product Specifications
- 0.02 %
- 10 to 60 Tonne
Product Description
Technical Specification :
|
Rated Capacity |
20t to 300t |
|
Sensitivity |
2.000mV/V |
|
Total Error |
0.1% of F.S. |
|
Creep |
0.2% of F.S. |
|
Recommended Excitation Voltage |
5-15V DC |
|
Zero Balance |
1% of F.S. |
|
Input Impedance |
380 ohm |
|
Output Impedance |
350 ohm |
|
Insulation Impedance |
< 5000 mega ohm |
|
Safe Overload |
150% |
|
Ultimate Overload |
200% |
|
Operating Temperature range |
upto 60 deg celcius |
|
Compensated Temperature Range |
Upto 70 deg celcius |
|
Temperature effect on load |
|
|
Temperature effect on zero |
|
|
Construction |
Alloy Steel |
|
Protection Class |
IP 68 |
|
Cable Length |
15Mtr |
