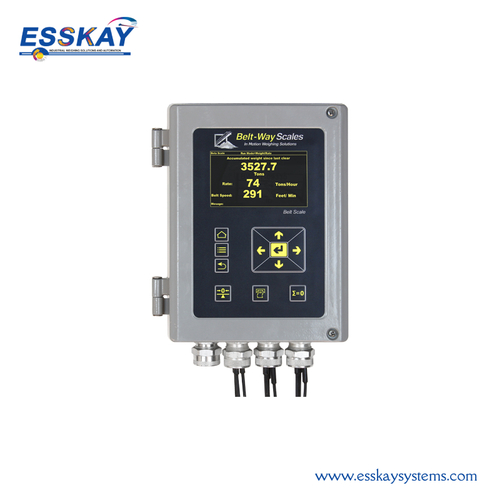

Belt-Way Scale Integrator

Name: Belt-Way Scale Integrator
Brand: ESSKAY WEIGHING AND AUTOMATION
Price: 10000.00 INR
Availability: InStock

Price 10000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Belt-Way Scale Integrator Specification

Application
Mining, Aggregates, Bulk Material Handling

Display Type
Digital/LCD

Power Source
Electric

Usage
Belt Scales, Conveyor Weighing Systems

Function
Continuous Weighing and Data Integrating

Connectivity Type
Wired

IP Rating
IP65 Enclosure

Features
Easy-to-read display, rugged enclosure, user-friendly controls

Interface
RS232, RS485, Ethernet (optional)

Automatic Grade
Automatic

Battery Life
Optional Battery Backup

Size
Panel Mount or Wall Mount Options

Product Type
Belt Scale Integrator

Weighing Scale Type
Belt Conveyor Scale

Material
Industrial Grade Components

Power Supply
110-240 VAC, 50/60 Hz

Monitor Display
LCD Graphic Display

Load
Up to 10,000 TPH (Tons per Hour)

Accuracy
0.5% or better

Capacity Range
Variable; Configurable as per application

Color
Grey/Black

Event Memory
Logs up to 1000 events

Data Logging
Yes, with onboard memory

Environmental Protection
Weatherproof Enclosure

Dimensions
Approx. 260mm x 160mm x 90mm

Alarm Output
Relay output available

Real-Time Data Transmission
Supported

Weight
Approx. 2.5 kg

Calibration Method
Automatic and Manual Calibration

Communication Protocols
Modbus, TCP/IP (Optional)

Mounting Type
Panel and Field Mounting Supported

Software Compatibility
Compatible with Belt-Way Plant Connect Software

Password Protection
Operator Access Levels

Language Support
Multi-language Interface

Operating Temperature
-10C to +50C

About Belt-Way Scale Integrator

Display:

12-24 VDC, 55 Watts
optional 110/240 AC power adapter

Inputs:

8 Load Cells (millivolts)
1 Speed Sensor (0-5 VDC Pulse)
1 Angle Sensor (0- 4 VDC)

Outputs:

1 RS232 (Printer Port)
1 RS232 (Display Port)
1 Ethernet Port (Modbus TCP)
1 USB 2.0 Client

Optional IO Outputs:

4-20 mA outputs (Tons Per Hour)
Digital Pulsed Output (Total Weight)
Min / Max Speed
Min / Max Tons Per Hour
Zero Calibration
Load-Out

Optional IO Inputs:

Clear Weight
Print Ticket
Zero Calibration

Operating Temperature: -20 Deg Celsius to 45 Deg Celsius

Humidity: The unit is suitable for outdoor use.

Altitude: The unit is suitable for use to elevation of 2000m.

Product details

Country of Origin	Made in India
Usage/Application	Conveyor Weighing System
Material	Mild Steel
Brand	Esskay
Accuracy	+/- 0.25% F.S.
Weighing Capacity	3000TPH
Belt Width	upto 3000mm
TPH	500

Precision Engineering for Harsh Environments

Engineered with industrial-grade components and an IP65-rated enclosure, this Belt-Way Scale Integrator is designed to thrive in extreme operational conditions, ranging from -10C to +50C. Its weatherproof construction makes it suitable for both indoor and outdoor installations in demanding industries like mining, aggregates, and bulk material handling.

Advanced Data Management and Connectivity

With onboard memory to log up to 1000 events and support for multiple communication protocols-including Modbus, RS232/RS485, and optional TCP/IP-the integrator ensures seamless real-time data access and reporting. Compatibility with Belt-Way Plant Connect Software enables straightforward remote monitoring and data analysis, simplifying workflow integration.

User-Focused Design Enhances Usability

Featuring a multi-language graphic LCD display and easy-to-navigate controls, the system supports both automatic and manual calibration. Operator access levels are safeguarded through password protection, making the device both secure and convenient for a range of users, from technicians to supervisors.

FAQ's of Belt-Way Scale Integrator:

Q: How can the Belt-Way Scale Integrator be mounted in different operational environments?

A: The integrator supports both panel and field mounting, offering flexibility for installation in a variety of settings. Its IP65 weatherproof enclosure ensures durability in both indoor and outdoor applications such as mining sites, processing plants, and bulk material handling facilities.

Q: What types of communication protocols are available with this scale integrator?

A: This integrator is equipped with versatile communication options, including Modbus, RS232, RS485, and an optional Ethernet TCP/IP interface. These protocols facilitate integration with existing plant automation systems and enable real-time data transmission for remote monitoring.

Q: When is calibration required, and what methods are supported?

A: Calibration should be performed during initial setup, after significant system changes, or as part of routine maintenance. The integrator supports both automatic and manual calibration methods, allowing operators to choose the best process based on operational requirements and accuracy needs.

Q: Where does the integrator store logged data, and how much can it retain?

A: With onboard memory, the Belt-Way Scale Integrator can log up to 1000 events internally. This capability provides a reliable data backup for operational analysis and compliance, even in the event of temporary communication loss.

Q: What are the key benefits of using the Belt-Way Scale Integrator in bulk material handling?

A: Key advantages include high measurement accuracy (0.5% or better), real-time data transmission, secure user access levels, and compatibility with monitoring software. Its rugged construction and ease of calibration enhance operational efficiency and ensure consistent performance in challenging environments.

Q: How does password protection enhance operational security?

A: The integrator features operator access levels, which require password authentication to protect configuration settings and sensitive data. This ensures that only authorized personnel can access and modify critical system parameters.
