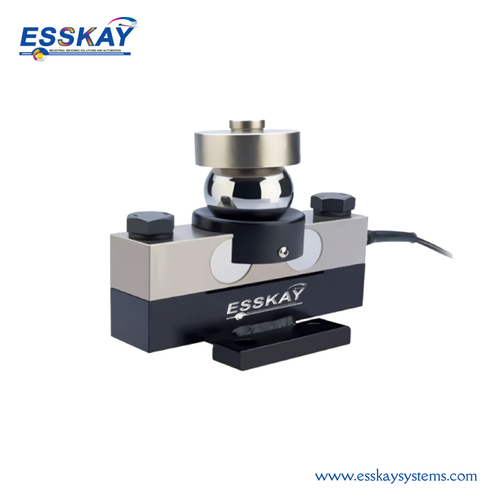

Specification Accuracy Class OIML R60 C3 Cable Length 20 metre Combined Error 0.030% FS Compensated Temperature Range -10 to +40 Deg C Creep Error (30 minutes) 0.03% F.SO Ingress Protection IP68 Insulation resistance at 50V DC >= 1000 M Ohm Load Cell Certifications OIML Material Stainless Steel Maximum Safe Overload 150% FS Operating Temperatue Range -20 to +70 Deg C Recommended Excitation Voltage 5 to 15V DC Temperature Effect on Output 0.001 FS/Deg C Temperature Effect on Zero 0.002 FS/Deg C Type Single Ended Shear Beam Ultimate Safe Overload 300% FS Product details Type Loadcell Brand Esskay Usage/Application Industrial Load Capacity up to 150 ton Design Robust Shape Rectangular Capacity up to 150 ton Material Alloy Steel Country of Origin Made in India Nominal Sensitivity 0 to 5mv/v
FAQs of Shear Beam Load Cells:
Q: What is the material used in Shear Beam Load Cells?
A: Shear Beam Load Cells are made of steel.
Q: What is the accuracy level of Shear Beam Load Cells?
A: The accuracy level of Shear Beam Load Cells is 0.02%.
Q: What is the maximum load capacity of Shear Beam Load Cells?
A: The maximum load capacity of Shear Beam Load Cells is up to 100 tonnes.
Q: What is the capacity range of Shear Beam Load Cells?
A: Shear Beam Load Cells have a capacity range of 100 to 3000 kilograms (kg).
Q: What type of power supply is required for Shear Beam Load Cells?
A: Shear Beam Load Cells require an electric power supply.
