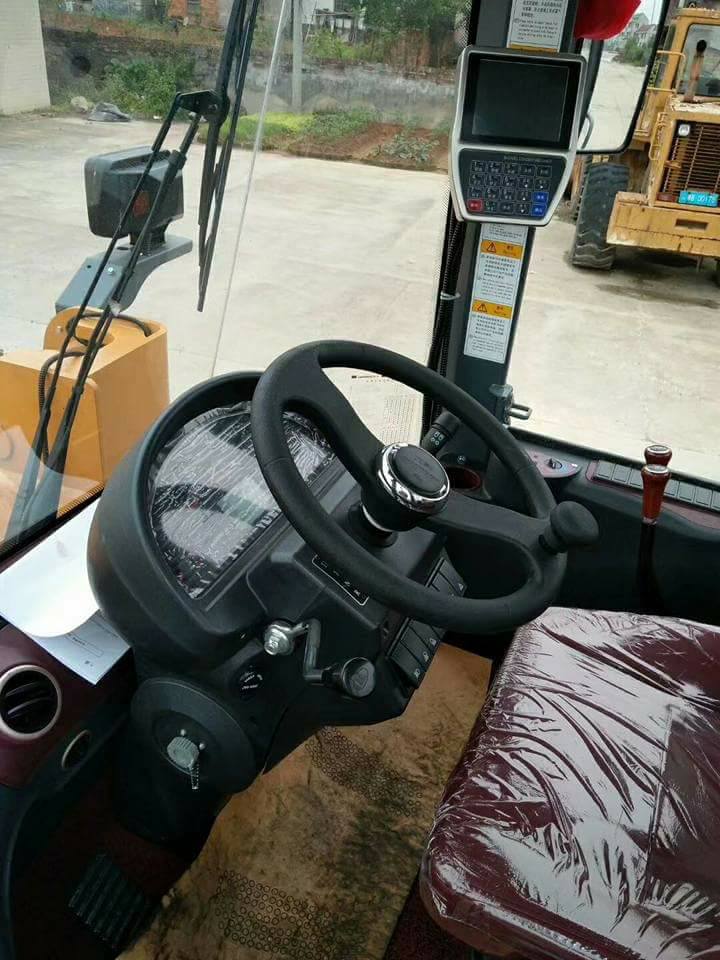

On Baord Loader Scale

Product Description

Display

• 640x480 TFT color display screen for English character display.
• Weight Display Range of Indicator: -99,999~99,999.
• System Weighing Range: 100~12,000kg.
• Scale Division: Optional 1, 2, 5, 10, 20, 50kg.
• Display Resolution: 1/100,000.
• Scale Unit: Fixed kg.
• Weight Unit: Optional kg, t.
• Ton Decimal Point: Optional 0, 0.0, 0.00, 0.000.
• Display Refreshing Time: Setting Range 0.1~2.0s.

Keypad

• 20-key English keypad with controllable backlight.
• Menu & Shortcut mode operation with key tone.
• Number and English Alphabet can be inputted.

Position Sensor Input Interface

• 2 Switch signal Input.
• Output Voltage: DC12V.
• Max. Output Current: 100mA.

Oil Pressure Sensor Interface

• Excitation Voltage/Max. Current: DC12V/100mA & DC5V/100mA.
• 2 Oil Pressure signal inputs.
• Signal Input Range: Optional 0~20Mv/4-20mA, 0~5V[Factory Set Value].
• ADC: 24-bit, 1,000,000 internal code used.
• Sampling Frequency: 400Hz.
• Special anti-vibration digital filtering algorithm.
• Zero Drift: ±0.1V/„ƒ RTI (Relative to Input).
• Gain Drift: ±5ppm/
• Non-linearity: 0.005%FS.

Digital Communication Interface

• COM1: RS232.
• Internal COM2: Optional wireless serial communication module.
• Internal COM3: Connected Thermal Serial Printer, Baud Rate 9600bps, No Parity Check Bit.

Report Print

10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value.

Operating Specification

• Operating Voltage: DC24V±20%.
• Max. Power Consumption: 10W.
• Outline Size: 168x213x50mm [WxHxD].
• Operating Temperature: -25 to +45.
• Storage Temperature: -30 to +60
• Relative Humidity: Max. 85%RH.
• Protection Level: IP65.
• Weight: Approx. 2.0kg.
